Why Does Pet Food Packaging Surface Become Wrinkled or Uneven?
7/15/20262 min read

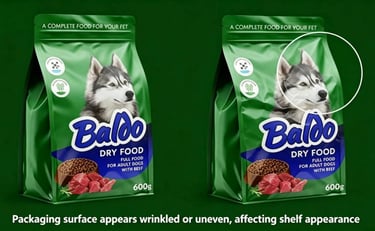

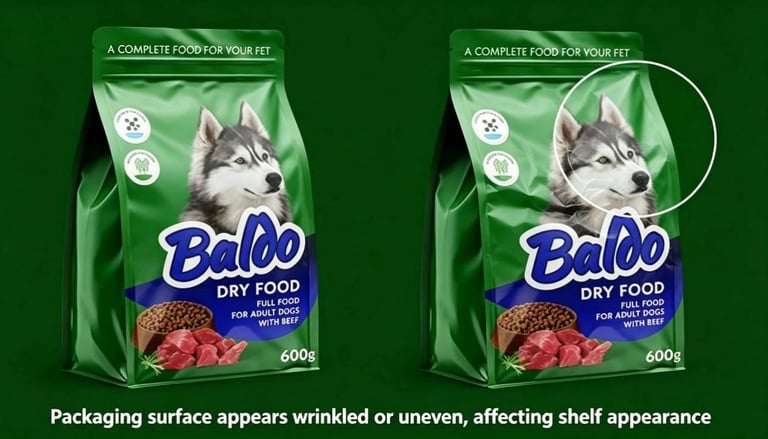

Comparison Diagram of the Phenomenon
I. Problem Phenomenon:
After the pet food bag is formed or filled, the surface shows obvious wrinkles, waviness, or unevenness, which compromises the visual quality and even affects shelf display appeal.
II. Main Cause Analysis

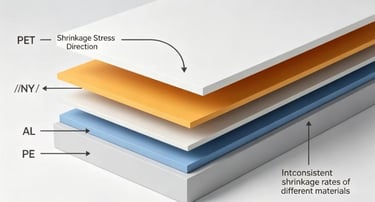

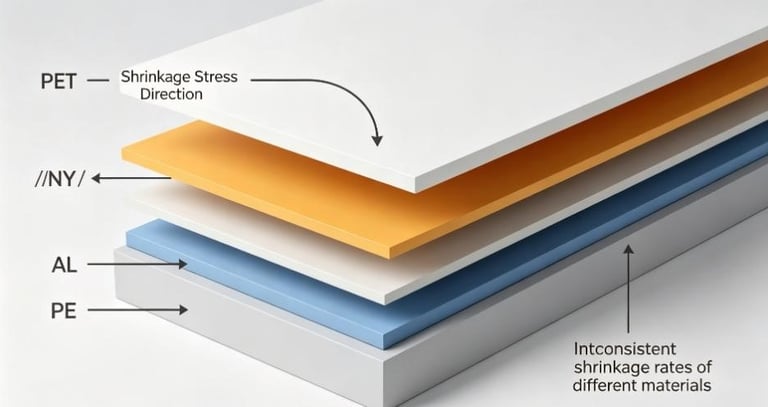

Inconsistent shrinkage rates of composite materials
Different materials (e.g., PET, PE, PA) shrink at different rates during processing and cooling, creating internal stresses that cause surface wrinkles or a "pulling" sensation.Unstable tension control during lamination
During dry or solventless lamination, uneven tension control can result in localized material stretching or slackening, forming wrinkles.
3. Insufficient film thickness or rigidity
If the material is too thin or lacks adequate stiffness, it cannot maintain its shape after filling or stacking, making it prone to collapse and creasing.
4. Heat seal process effects
Excessively high sealing temperatures or uneven cooling can cause localized shrinkage in the seal area, resulting in wrinkles or wavy patterns.
5. Uneven filling method
Large kibble particles or uneven filling impact can cause uneven force distribution inside the bag, leading to surface deformation.
III. Solutions
1. Optimize composite structure matching
Select material combinations with more closely matched shrinkage rates (e.g., optimized PET/PA/PE ratios) to reduce internal stress differentials.
2. Improve tension control precision
Stabilize the tension system during the lamination process to avoid excessive stretching or slackening of materials, ensuring interlayer flatness

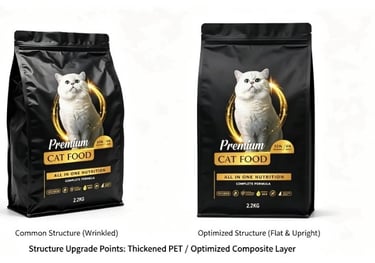

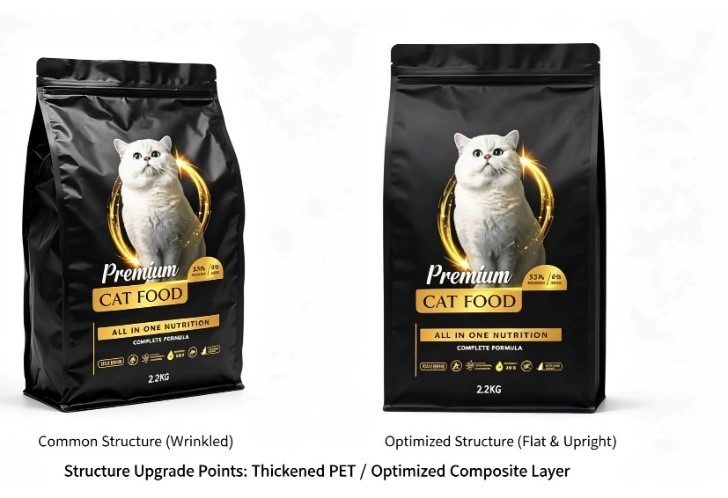

3. Increase material stiffness
Appropriately increase PET thickness to enhance overall rigidity and improve resistance to deformation.
4. Optimize heat sealing process
Adjust sealing temperatures and cooling times to prevent localized overheating and shrinkage that lead to wrinkles.
5. Optimize bag structure design
Adopt structures such as eight-side seal bags or flat-bottom bags to achieve more uniform force distribution and reduce surface deformation.
IV. Summary
Wrinkling on pet food packaging surfaces is essentially a comprehensive issue caused by imbalances in material matching, process control, and structural design. By optimizing composite structures, improving process stability, and refining bag design, surface flatness and shelf presentation can be effectively enhanced.
